Enhancing the Pokédex: input lag, React, and monitor refresh rates

Pokémon Type Calculator

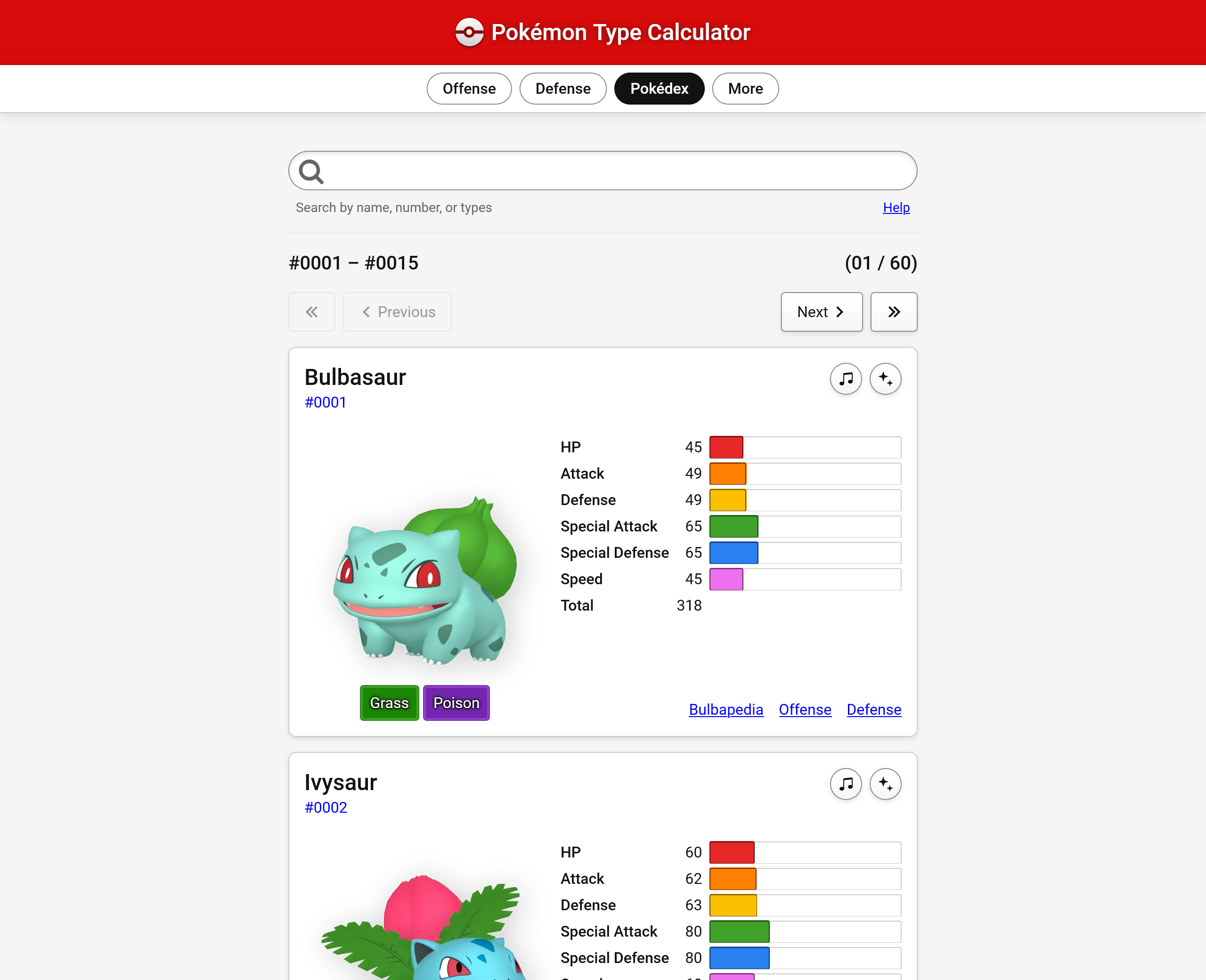

Before

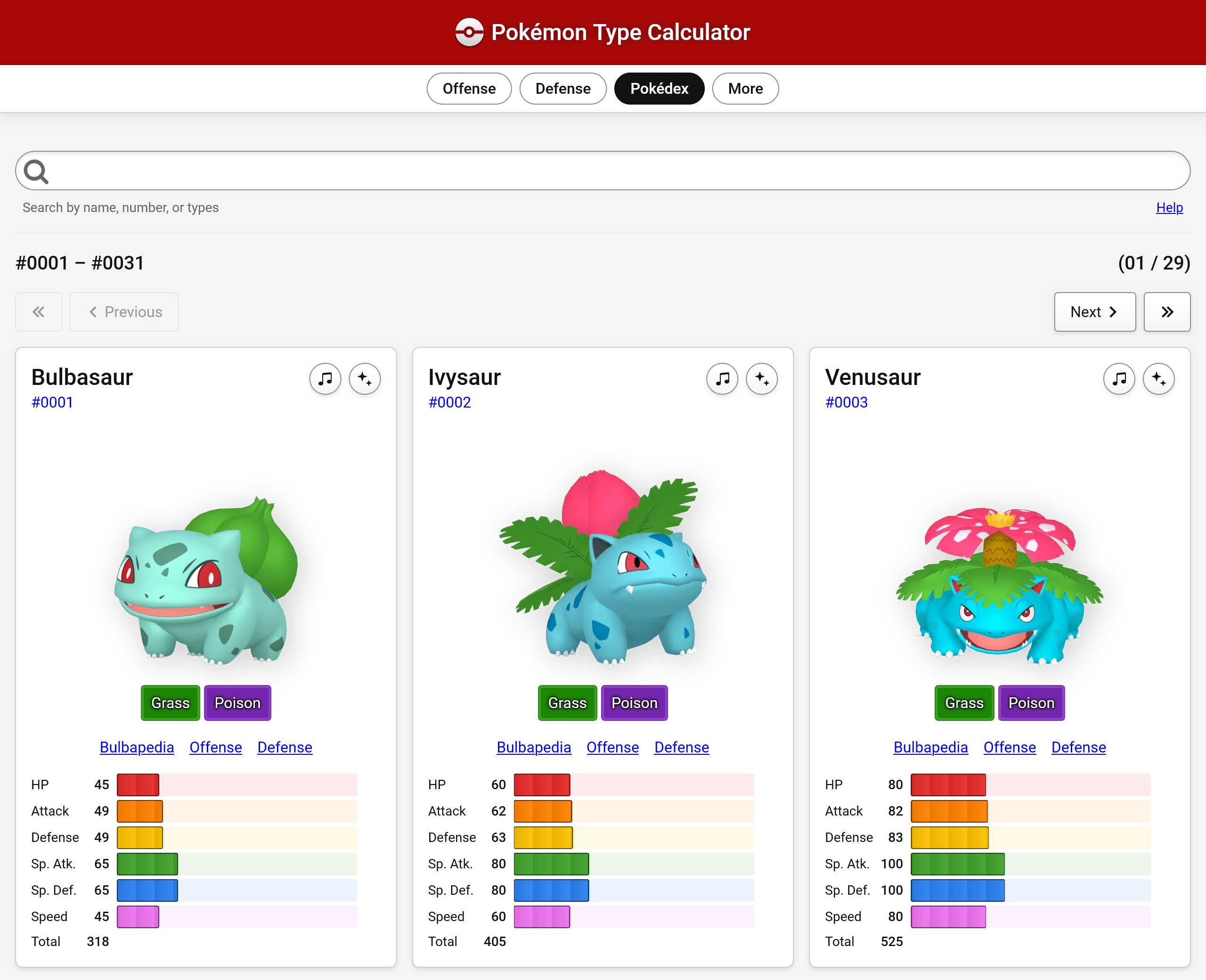

After

Changelog

• The Pokédex now shows up to 3 Pokémon columns depending on screen size

• The Pokédex uses a consistent layout regardless of screen size

• The Pokédex stats bars have been redesigned

  • The colored background helps guide your eyes to the stats you want to see

  • The segmented appearance helps you compare the size of one bar to another

• Increased Pokédex page size from 20 to 42

• Removed the default “Normal” type selected on the defense screens

  • This should make setting up your team less annoying since you won’t have to click an extra time to unselect “Normal” if setting up a single typed Pokémon

• Improved usability of the website when using an increased browser default font size

• Reduced the brightness of the header in light mode and night mode

• Increased the speed of the Pokédex search a little

• The Pokédex search now dims the results while a search is happening, so you know it’s working

  • I know this section is slow, and increasing the page size made it slower. I’m still trying to come up with a way to make it faster. I’ve received requests to make the page size bigger, and the main reason I haven’t done much with that is that the search gets really slow…

• Emphasized the stat numbers in the Pokédex instead of the stat labels

Technical details

I’m so tired of using React lol. This was my first time adding useDeferredValue to the code. The Pokédex has historically been a slow screen to render, and keystrokes can lag. If there’s one thing I hate on computers, it’s input lag. So traditionally I papered over this by keeping the page size really small, so renders could complete in relatively short order even on low powered devices.

Multiple people have asked me for larger page sizes, though, and I’m trying to work towards supporting this. I know that useDeferredValue can be really helpful for making this happen. I should probably read Josh W. Comeau’s post about it again.

I found that the Chromium DevTools have an INP measurement tool, and I saw some improvements to those numbers after making changes. The React docs mentioned a nice UI pattern of fading out “stale” results while the user waits for new ones, which I enjoy. The first thing you need after keyboard input is for the character to appear on screen, and users (especially me) are highly sensitive to any lag there. Personally, anything more than 100 ms is really distracting. If you think for a moment about framerates, 16.67 ms approximately the timing for a single frame at 60 fps. Ideally your UI would redraw faster than that. I’m currently typing this on a 360 Hz display, but I definitely don’t need my keystrokes to appear withi 2.78 ms on screen. That being said, I can see the difference between 30, 60, 120, and 360 Hz refresh rates when it comes to moving my mouse. If you don’t believe me, come over to my house. Silly rhymes aside, I bet you could notice the difference too, in a side-by-side setting.

Another piece of advice from the React docs was something I had already considering: not using controlled inputs. This means not supplying a value prop. Instead, you just listen to onChange. The problem is, sometimes I need to programatically change the value of the input. You can instead do this with a ref, but then you also have to manually trigger your onChange function. It’s a bit messy, but because you’re circumventing the entire React rendering pipeline, keystrokes only have the intrinsic delay created by the web browser (which is not enough for me to notice). Maybe I’ll try this next, honestly. I don’t really need controlled inputs here, I’m just being stubborn. I’m increasingly tired of the solution to every JS-created problem being “add more JS to it”, and useDeferredValue is no different.

Maybe one day I’ll rewrite Pokémon Type Calculator with a different framework, or perhaps none at all? But it’s such a large application that this is a grueling task. And any cross-framework compatibility stuff tends to be super not-fun. If I do any change at all, it would be to migrate towards vanilla web components, or a small library that makes web components more palatable. I loathe updating my packages for this side project.

It’s not like this is the main source of “bloat” on the site though: the static JSON files I load for translations and especially the Pokédex dwarf the JS bundle. And if you skim the entire Pokédex, you’ll load quite a few images into memory (despite my best attempts to optimize these with WebP, the Pokémon Home images are about 20 kB each for the 512px versions loaded on retina screens).
